Attenuated total reflection Fourier transform infrared (ATR-FTIR) spectroscopy is a fantastic technique for analysing biofluids. By measuring molecular bond vibrations when interrogated with IR light, a biological fingerprint can be obtained from the sample in the form of an IR spectrum. ‘Biofluid biopsies’ are of interest to healthcare researchers and clinicians because they represent a minimally invasive sample collection method. Many biofluids, such as urine, saliva, and blood, can be studied using ATR-FTIR. Spectral differences between biofluid samples allow differentiation between healthy and diseased patients.
Blood is the most widely used biofluid in diagnostic medicine. It is composed of plasma, red blood cells, white blood cells, and platelets. For spectroscopic analysis, either plasma or serum is typically used, since because both solutions can be frozen for preservation. In whole blood, the freezing process would result in cell disruption, and the haemoglobin has a large spectral influence. Plasma is an aqueous solution which is separated by centrifuging in an anti-coagulant tube, while blood serum is created by allowing the blood to clot, thus separating the blood cells and platelets (Figure 1). Blood serum is more commonly used as this preparation method is more efficient at removing red blood cells.

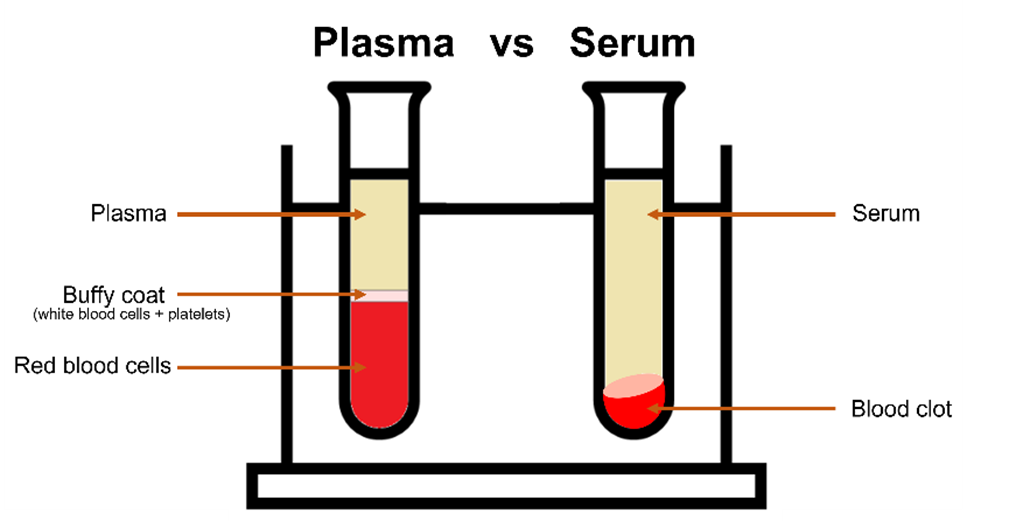

Figure 1. Plasma vs. serum.
ATR-FTIR in the mid-IR region (4000 cm-1 – 400 cm‑1) contains the fundamental vibrations of the functional groups in biological samples, such as proteins, lipids, and amino acids. The technique requires a small sample volume in the order of microlitres, providing rapid results whilst also being a cost-effective and easy-to-use method for diagnostics. Blood serum analysis using ATR-FTIR spectroscopy has been demonstrated for a number of disease studies such as cancer, endometriosis, brain disorders, and viral infections.1–6
One drawback of ATR-FTIR for biofluid analysis is the influence of water on the IR spectrum (Figure 2). Water produces a strong IR response due to its polarity; when biofluids are analysed in liquid phase using ATR-FTIR, the water spectrum masks the biological information from the sample. Standardly, when measuring biofluids, the user must wait for the sample to dry and reveal the biological spectrum. However, this is time-consuming and slows down the total acquisition time. A faster approach is to use a heated ATR accessory. By heating the sample, the water will evaporate faster, and the total acquisition time is significantly reduced. In this Application Note, an Edinburgh Analytical IA30 FTIR Spectrometer equipped with a heated ATR accessory was used to remove water and rapidly measure the spectrum of blood serum.

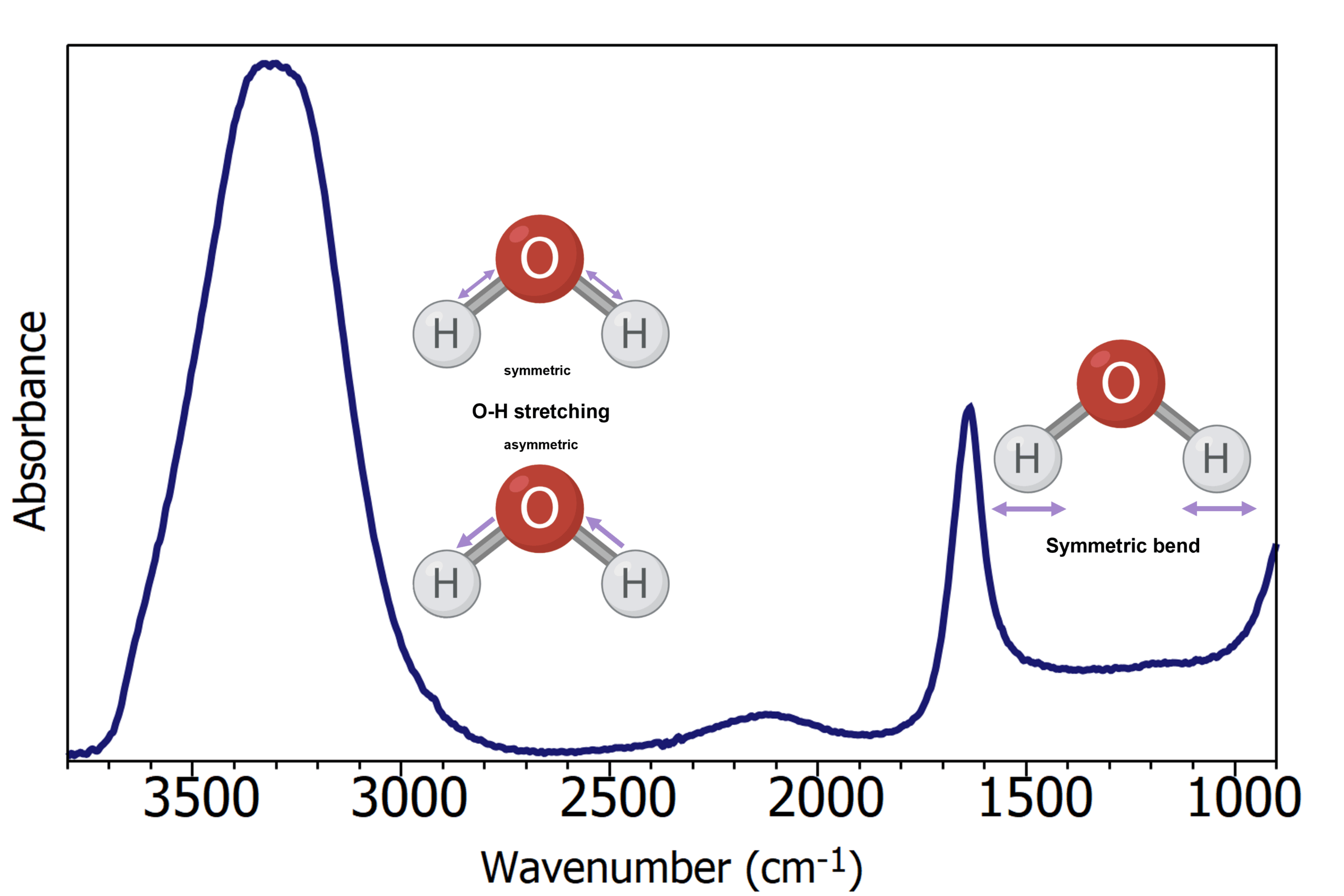

Figure 2. ATR-FTIR spectrum of water.
A sample of human serum albumin (HSA) was measured in an Edinburgh Analytical IA30 FTIR Spectrometer equipped with a heated ATR accessory (Figure 3). The ATR’s internal reflective element (IRE) was diamond, a commonly used IRE due to its high refractive index and robustness. As a result of their excellent thermal conductivity, diamond ATRs are particularly suited to heated experiments.

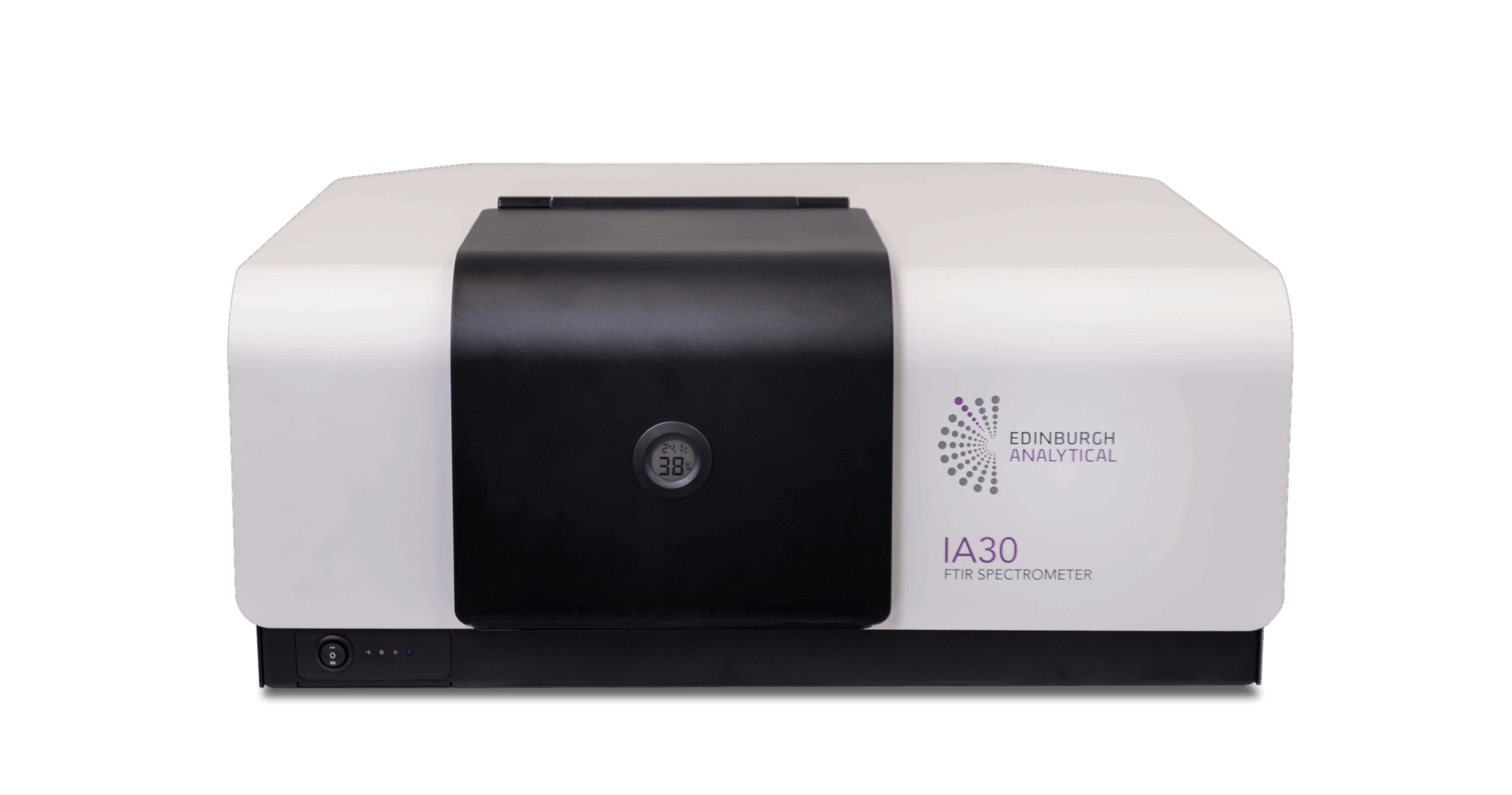

Figure 3. Edinburgh Analytical IA30 FTIR Spectrometer.
To demonstrate the effect that heating the ATR has on drying times, 3 μL of sample was pipetted onto the ATR without heating, and spectra were collected. This process was repeated with the ATR pre-heated and held constant at 50°C. The IR spectra were collected with a resolution of 4 cm-1 averaging 10 spectra, with a total acquisition time of 35 seconds for each spectrum.
The IR spectra of HSA acquired after 2 minutes drying on a room temperature (blue) and heated (red) ATR are shown in Figure 4. In the room temperature ATR measurement, the spectrum was dominated by the strong water absorption bands and the biological spectrum was obscured. With the heated ATR, a full biological spectrum without any water interference was obtained. If the blue spectrum was left to dry longer at room temperature, it would take over 15 minutes of drying for the biological spectrum to be sufficiently revealed for analysis, greatly reducing measurement throughput.

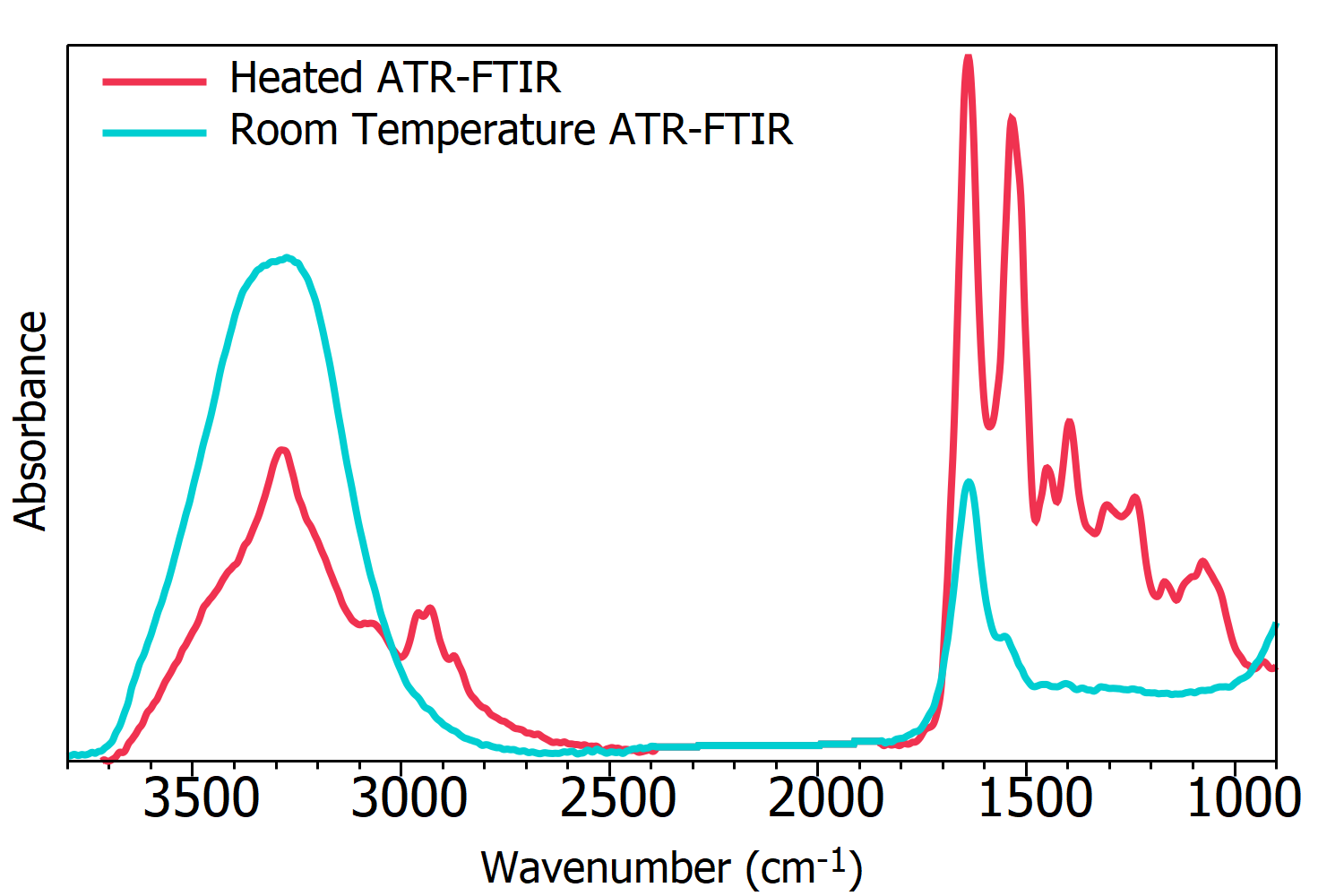

Figure 4. ATR-FTIR spectra of HSA at room temperature (blue) and heated to 50ׄ°C (red) after 2 minutes drying time.
ATR-FTIR reveals significant information on the biological components within a biofluid sample, and Figure 5 gives the band assignments of the serum spectrum. IR bio-spectra can be thought of as two regions: the high-wavenumber region from 2600 cm-1 to 3800 cm-1, and the low-wavenumber region from 2000 cm-1 to 500 cm-1, consisting of double bond stretching and the fingerprint region, respectively. The low-wavenumber region produces the most discriminatory data, and is the area most used for diagnostics.7

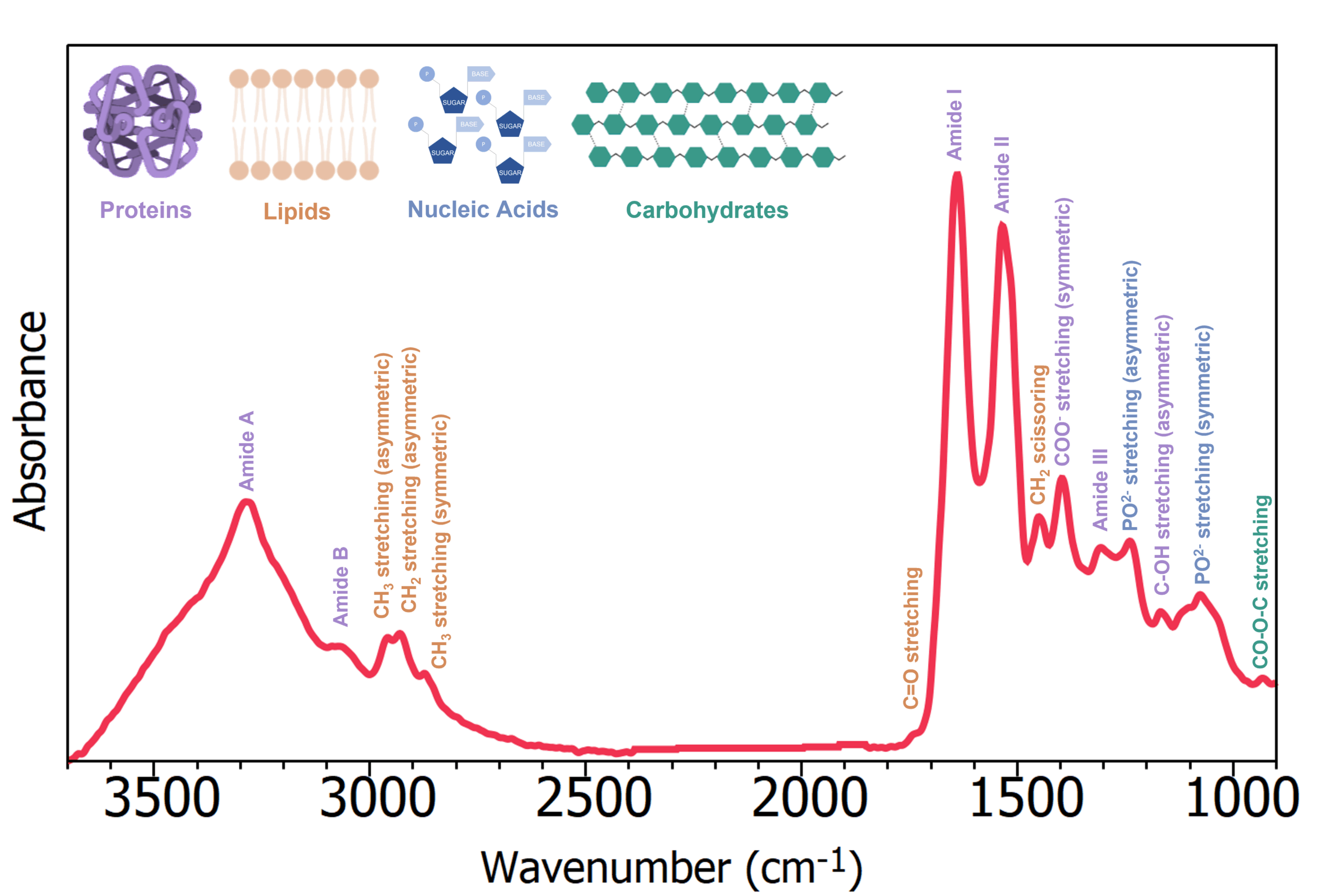

Figure 5. ATR-FTIR spectrum of HSA with band assignments.
This Application Note demonstrates the high sensitivity of the IA30 FTIR Spectrometer to the analysis of biofluids by providing a biological fingerprint of a serum sample using ATR-FTIR Spectroscopy. The problem of parasitic water absorption was overcome by equipping the IA30 with a heated ATR accessory. By using a heated ATR, the drying time required before spectral acquisition was greatly reduced without reducing the spectral quality.
