Spectracle
Spectracle software is designed to be easy-to-use and provide powerful features and functions. Using the Workspace concept, users can easier create, calculate and combine different scans for analysis and reporting purpose.
Basic functions includes Excitation and Emission scans, 3D Scans, Time Scan, Synchronous Scan, Fluorescence, Quantitation and Validation.
For efficiency, users can easily add and store applications that are used routinely.
Spectracle makes reporting simple, with a single click option to choose what is included in the report.
Life science application – Polarization of Rhodamine 6G
Food science application – Determination of Vitamin B2
Environmental application – 3D spectrum of CDOM in marine water
Pharmaceutical application – Quantitation of Quinine
Material science application – Study of quenching fluorescence
Industrial application – Measurement of brightener

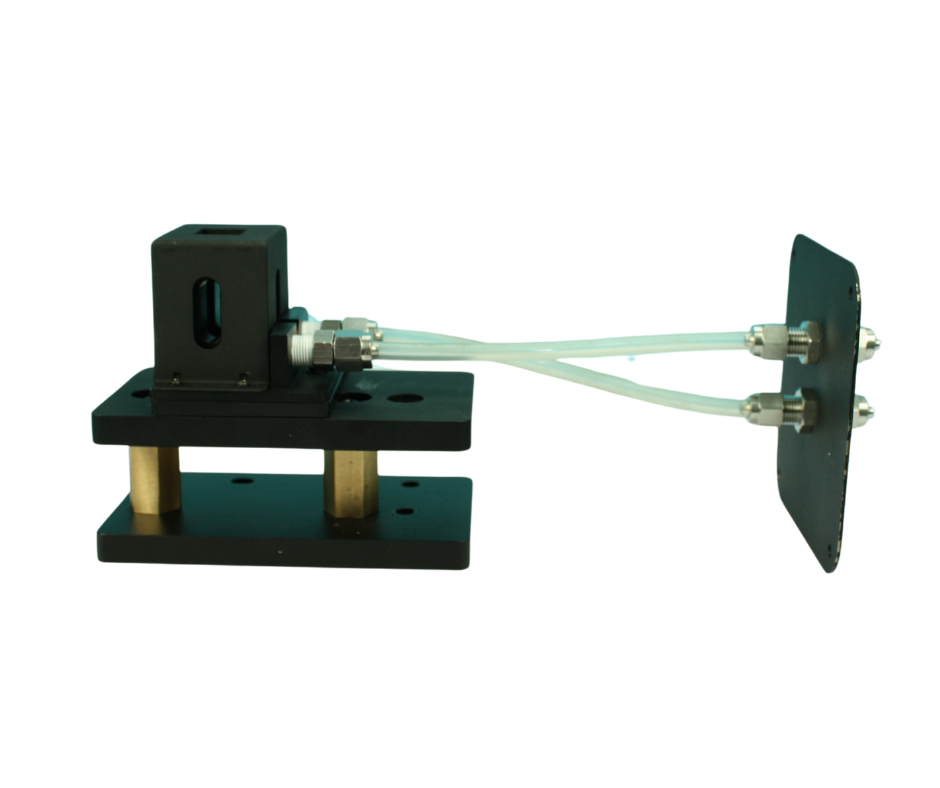

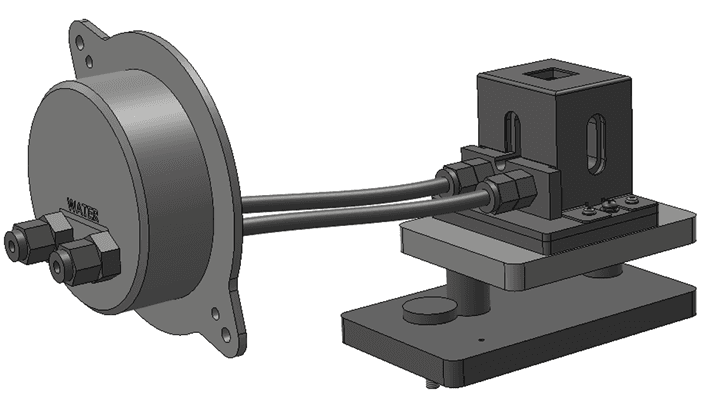

Enables controlling the sample cell (10 mm) temperature. Satisfy the testing requirement of biological sample (80 °C)

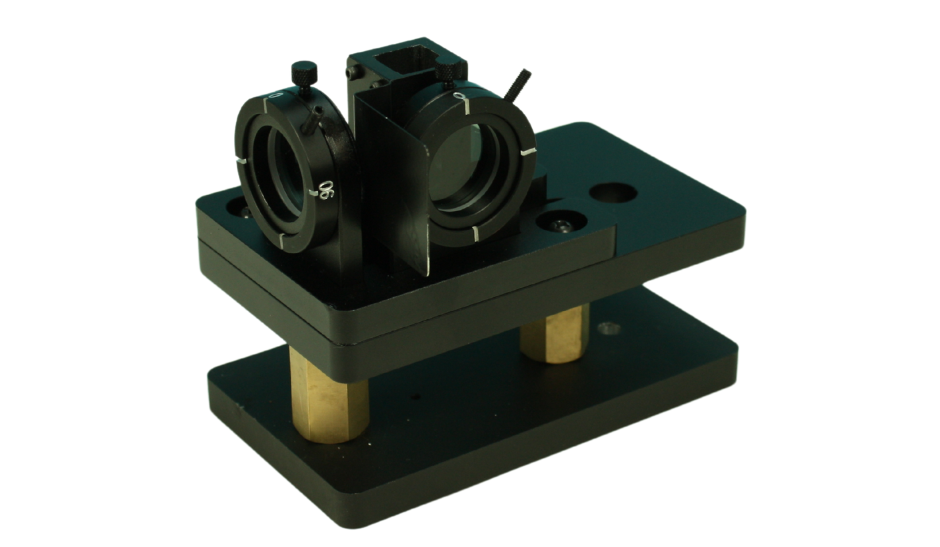

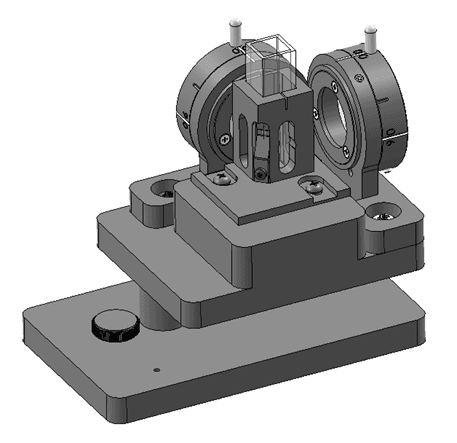

Polarisation application focusing on protein, enzymology and cellular study.

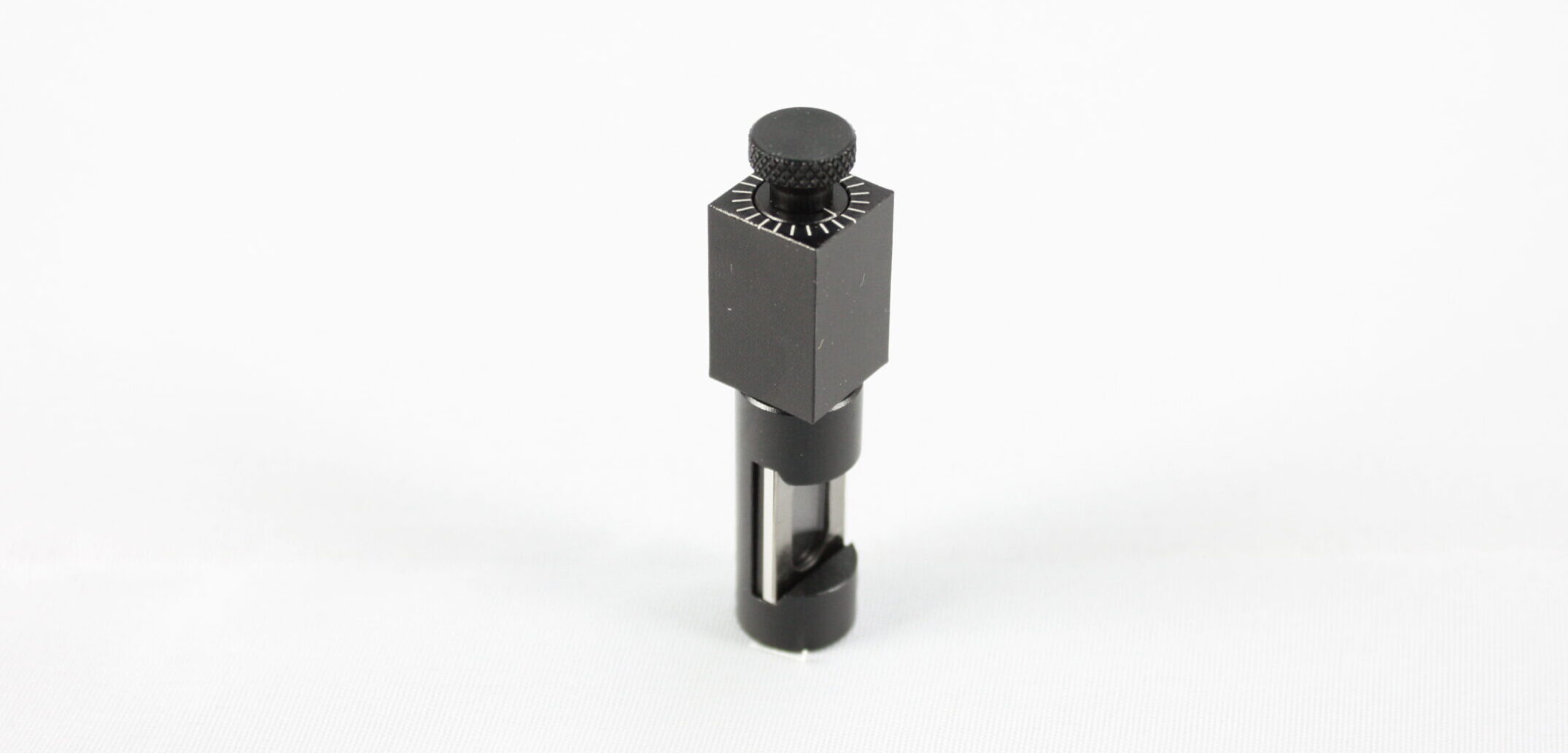

For powder and thin film samples. Light beam angle can be adjusted 0 – 90° horizontally.

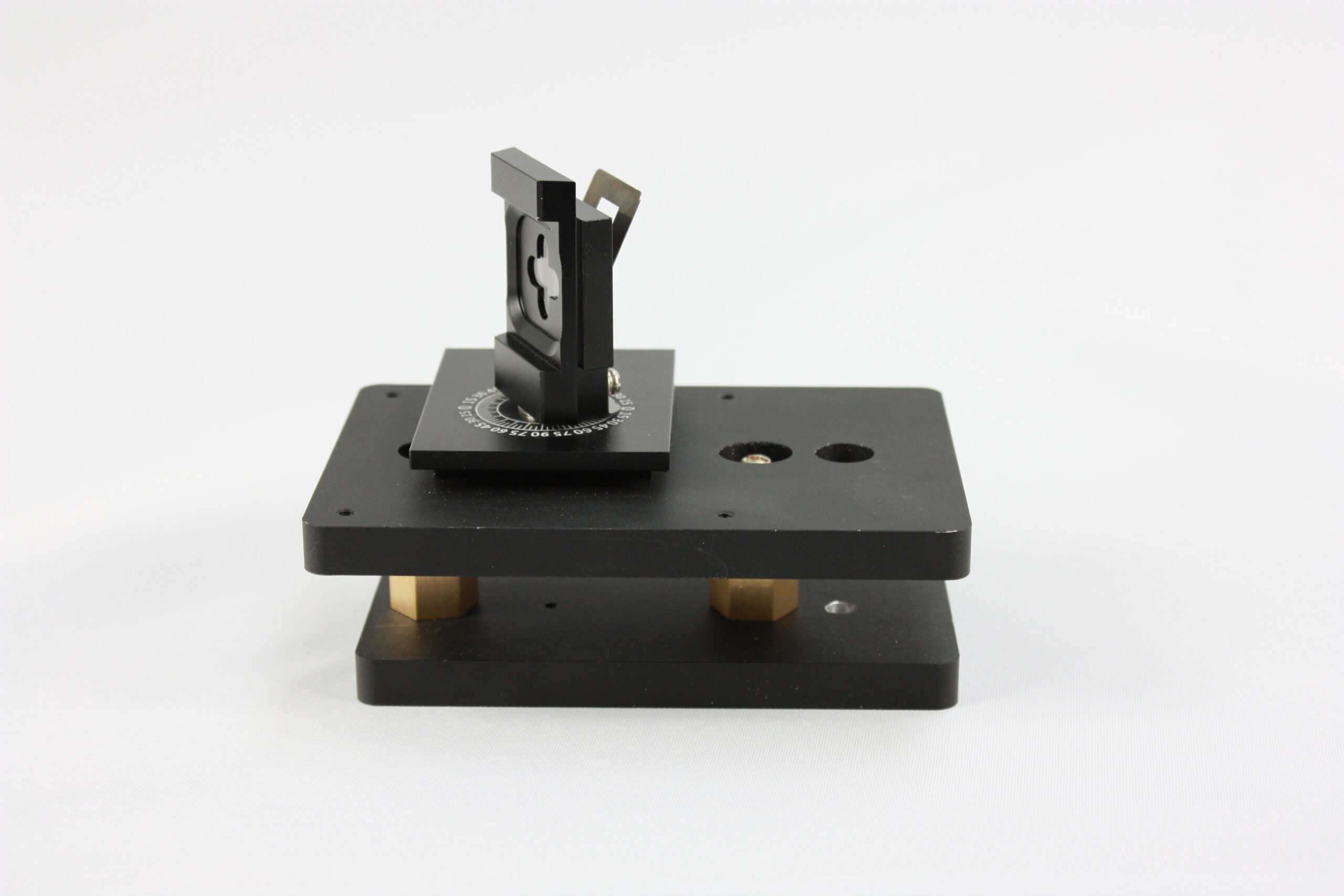

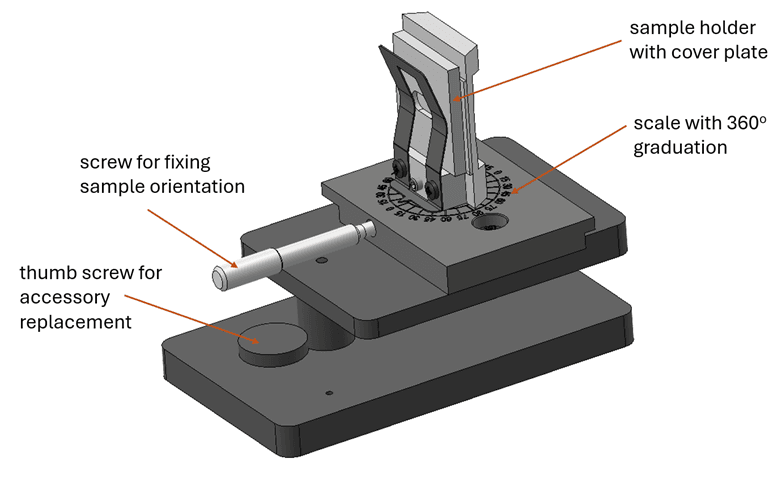

For powder and thin film type samples. Cell angle can be adjusted 0 – 90° horizontally.

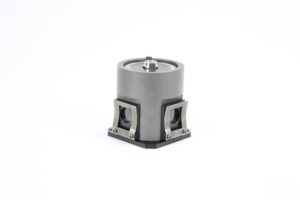

Addressing the needs of thermo-furo experiments with a temperature range 25-300°C.

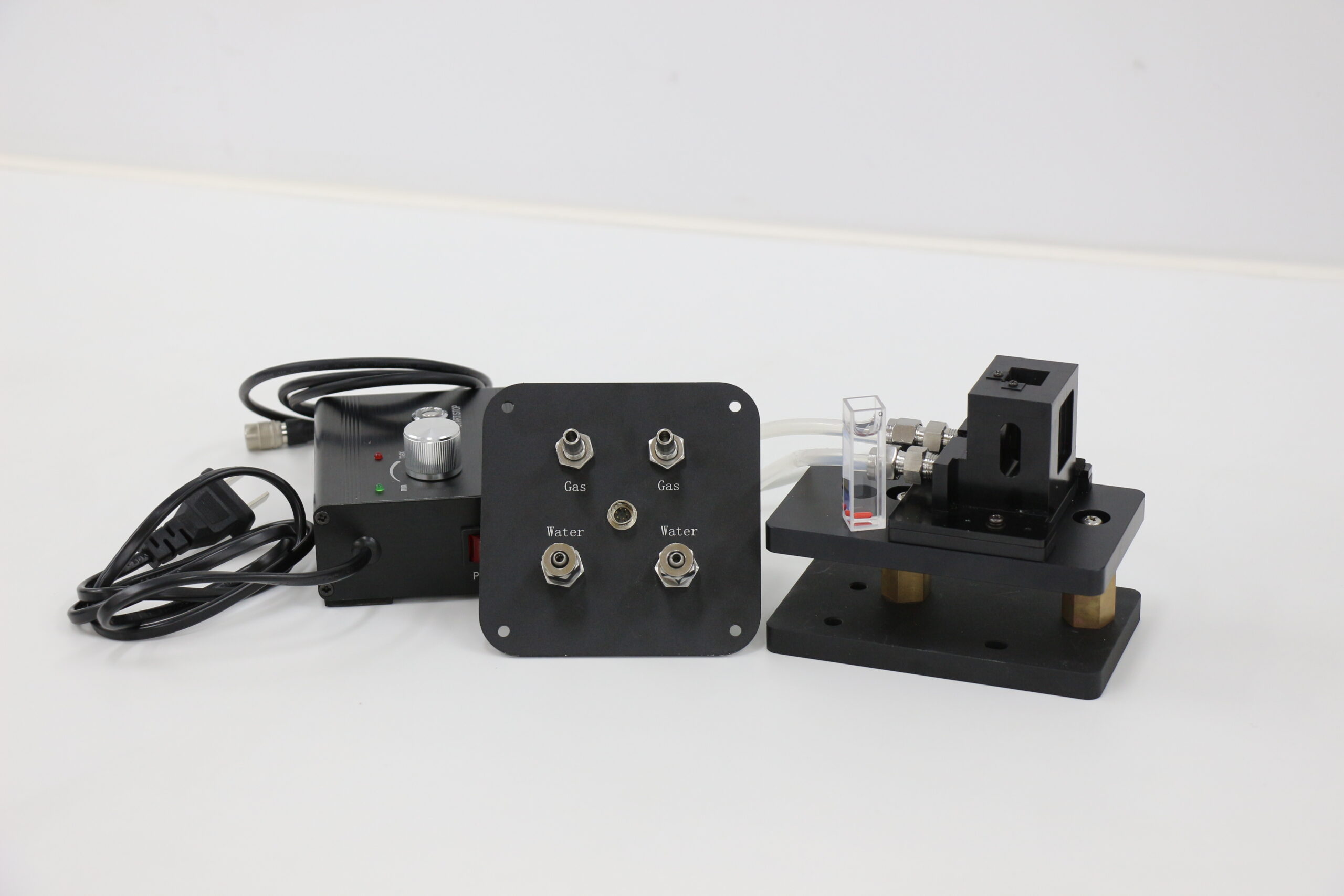

Stirring speed can be adjusted.
Stirrer size: 3 x 6 mm or 2 x 7 mm
Temperature control range: ambient – 80°C

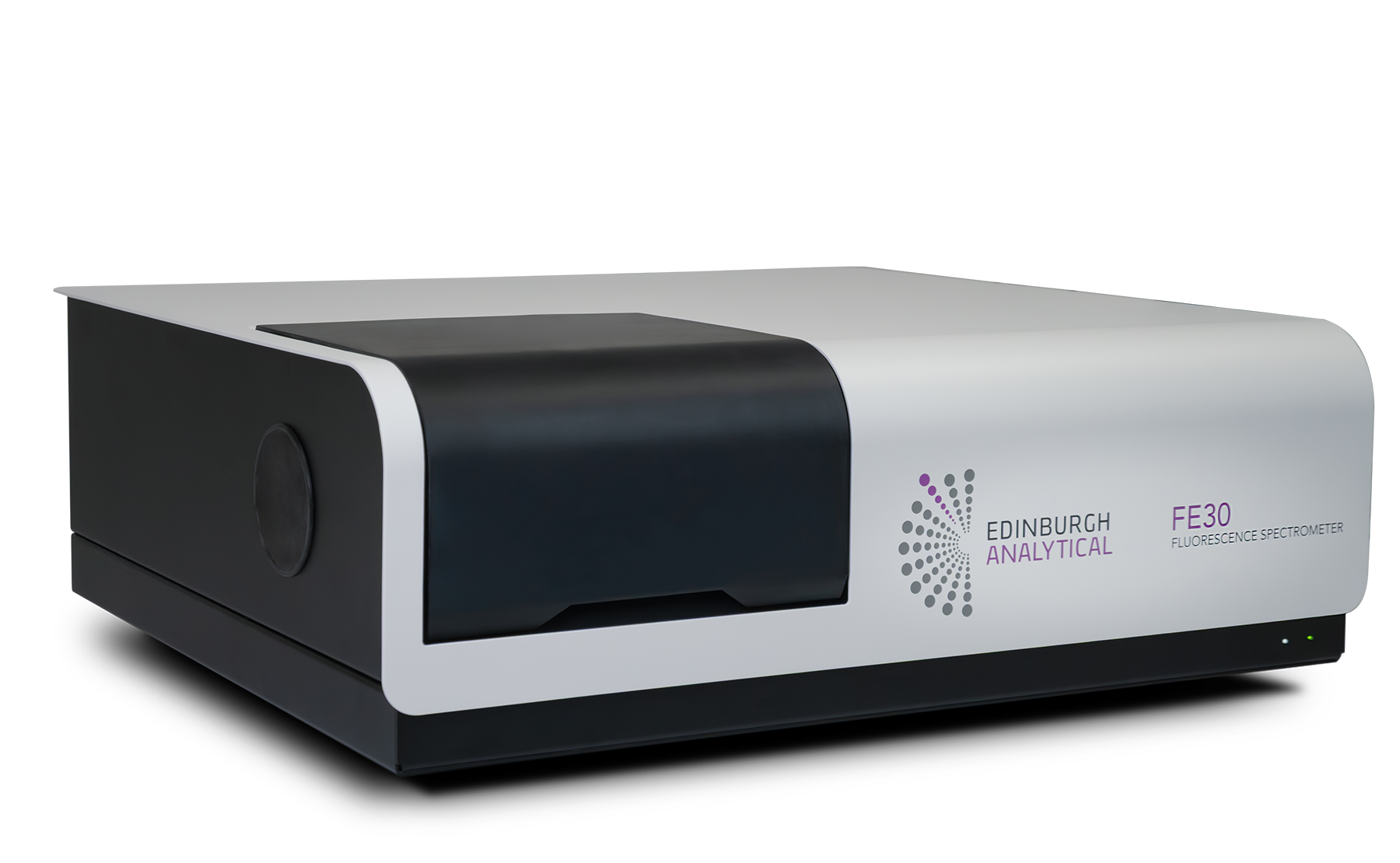

| Parameter | Description |
|---|---|
| Excitation source: | High Intensity 150 W Continuous Xenon Lamp |
| Wavelength Measurement Range: | Excitation (EX) 200 - 900 nm, Emission (EM) 200 - 900 nm |
| Spectral Bandwidth | Excitation: 1, 2.5, 5, 10, 20 (5 steps), Emission: 1, 2.5, 5, 10, 20 (5 steps) |
| Wavelength accuracy: | Excitation wavelength: ±2 nm, Emission wavelength: ±2 nm |
| Wavelength repeatability: | Excitation wavelength: ±1 nm, Emission wavelength: ±1 nm |
| Sensitivity: | Signal-to-Noise level using Raman peak of water, excitation 350 nm is 750:1 measuring RMS noise at the Raman peak (PK). 15,000:1 measuring RMS noise at the background (BG) |
| Optical platform: | One-piece cast aluminium base. All optical components are fixed on the cast aluminium base to ensure instrument stability and collimation. |
| Wavelength scan speed: | Max 60,000 nm/min; Selectable from 30, 60, 240, 1,200, 2,400, 12,000, 60,000 nm/min |
| Scan Interval: | 0.1 – 10.0 nm |
| Auto gain: | 0-1,000 V adjustable |
| Linearity: | R2 ≥ 0.995 (Quinine sulphate solution) |
| Baseline Drift: | ≤0.3% (10 min) |
| Fluorescence Intensity Drift: | <1.5% Ex: 350 nm, Em: 450 nm (within 10 min) |
| Fluorescence Value Range: | 0 to 50,000 |
| Detector: | Photomultiplier tube R928 |
| Software: | Spectracle PC-controlled software |
| Sample Chamber Dimension: | 247 (W) × 215 (D) × 172 (H) mm |
| Instrument Dimension (L×D×H): | 660 (W) × 600 (D) × 250 (H) mm |
| Weight: | 20 kg |
